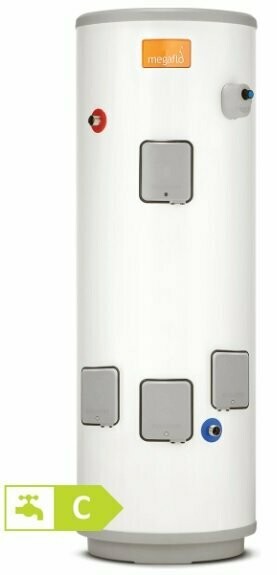

MEGAFLO ECO PLUS 250I+ INDIRECT
LINK: http://www.megaflo-unvented.co.uk/Megaflo_Range_Brochure.pdf
Megaflo Eco Plus builds on Megaflo Eco to deliver significantly higher performance levels for more demanding applications. Available in a range of capacities from 250 to 1000 litres, Megaflo Eco Plus delivers outstanding high flow rates of up to 176 litres per minute. This ensures an abundant and powerful supply of hot water at all outlets.
Furthermore every Megaflo Eco Plus has either an extra large surface area indirect heating coil or electric heating elements to ensure rapid heat recovery times for continuous performance during periods of high demand. Megaflo Eco Plus can be sited in almost any location, without detriment to performance and is simple to install with water expansion being accommodated by the supplied external expansion vessel.
ALL MODELS
- Extra large high performance coil heat exchanger
- Unique 'L' shaped immersion heater maximises the volume of hot water available when heated electrically
- Large bore tappings and low resistance safety valves for outstanding high flow rates
- External expansion vessel
250 AND 300 LITRE MODELS
- 60mm of CFC / HCFC-free injected foam for the best possible heat retention and energy efficiency
- 1 x 3kW heating element as standard on indirect models
400, 500, 570, 800 AND 1000 LITRE MODELS
- 100mm of CFC / HCFC-free injected foam for optimum heat retention and energy efficiency
- 1 x 3kW heating element as standard on 400, 500 and 570 indirect models
- 1 x 6kW heating element as standard on 800 and 1000 indirect models
Megaflo Eco Plus Indirect
| Product |
Height |
Width |
Weight |
Capacity |
Coil rating |
ErP rating |
Order Code |
|
| mm |
mm |
(empty) kg |
(full) kg |
litres |
kW |
|||
| 250i |
1737 |
579 |
59 |
309 |
250 |
42.2 |
C |
95:050:710 |
| 300i |
2052 |
579 |
66 |
366 |
300 |
42 |
C |
95:050:711 |
| 400i |
1502 |
861 |
105 |
505 |
400 |
56.9 |
B |
95:050:712 |
| 500i |
1802 |
861 |
110 |
610 |
500 |
54.3 |
B |
95:050:713 |
| 570i |
1977 |
861 |
115 |
685 |
570 |
53.6 |
C |
95:050:714 |
| 800i |
1914 |
1019 |
211 |
1011 |
800 |
58.7 |
C |
95:050:721 |
| 1000i |
2327 |
1019 |
219 |
1219 |
1000 |
64.8 |
C |
95:050:722 |
