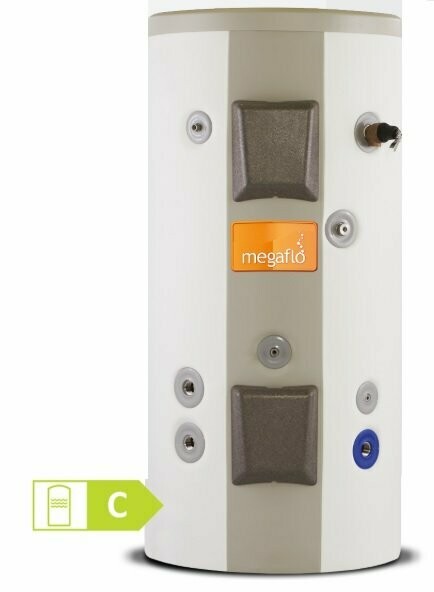

MEGAFLO COMMERCIAL

A mega brand for your mega demand.

Designed for instances of continuous or substantial demand such as hotels, leisure centres, office blocks and shopping malls, when there's often a need for lots of hot water very quickly, without loss in performance. Megaflo Commercial calorifiers provide large scale, commercial capacity and fast flow rates to satisfy even the highest demands.

Megaflo Commercial has a tremendous strength to weight ratio too and each cylinder is approved for operation up to a full 10 bar working pressure, with industry leading heat recovery times of less than sixty minutes. To ensure optimum safety our calorifiers meet the recommendations of the HSE document L8 with our integrated legionella control system.

• Available in Indirect and Solar models
• Despatched in 10 working days from order for cylinders 1000L and under 15 working days from order for cylinders 1250L and over (UK mainland destinations only)
• Unique high pressure option. True 10 bar operating pressure - negates the need for pressure breaks, delivers high performance and peace of mind
• Integrated Legionella protection - meeting the recommendations of HSE document L8 with up to three inspection ports as standard and optional stratification loop kit. Designed to ensure no deadlegs
• Industry leading heat recovery times of less than 60 minutes on all models - by high technology super performance coils or choice of Electric Elements up to a massive 162kW with 90kW
• Backed by a 30 year warranty package. Terms & conditions apply
• Designed, engineered and manufactured in the UK to our exacting standards of quality

Indirect - Unvented calorifiers

Product	Bar	A	B	Weight		Capacity	Maximum permitted load	ErP rating	Order Code
		mm	mm	(empty) kg	(full) kg	litres	kW @ 30 L/min
400i	6	1535	872	105	505	400	43.6	B	95:050:540
500i	6	1804	872	110	610	500	41.8	C	95:050:541
800i	6	1906	1024	164	964	800	52.7	C	95:050:542
1000i	6	2301	1024	188	1188	1000	51.4	C	95:050:543
1250i	6	1936	1224	319	1569	1250	63.6	C	95:050:544
1450i	6	2253	1224	322	1872	1450	61.2	C	95:050:545
2000i	6	2014	1470	445	2445	2000	98.4	C	95:050:547
2500i	6	2419	1470	450	2950	2500	86.4	*	95:050:549
400i	10	1535	872	105	505	400	43.6	B	95:050:570
500i	10	1804	872	110	610	500	41.8	C	95:050:571
800i	10	1906	1024	164	964	800	52.7	C	95:050:572
1000i	10	2301	1024	188	1188	1000	51.4	C	95:050:573
1250i	10	1936	1224	319	1569	1250	63.6	C	95:050:574
1450i	10	2253	1224	322	1872	1450	61.2	C	95:050:575
2000i	10	2014	1470	445	2445	2000	98.4	C	95:050:577
2500i	10	2419	1470	450	2950	2500	86.4	*	95:050:579

*ErP is only applicable up to 2000 litres.
